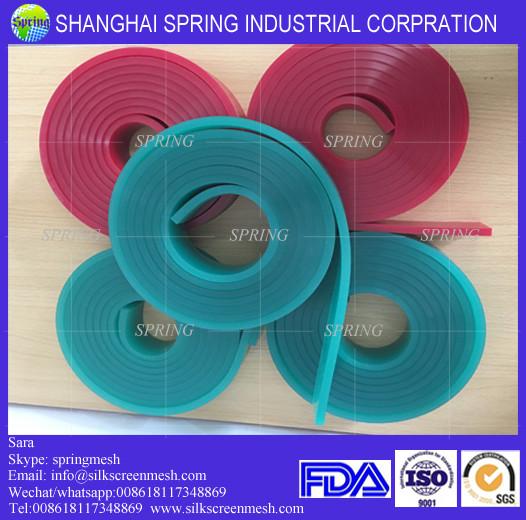

Silk Screen Printing Squeegee/Screen Printing Rubber Squeegee In
Stock
Squeegees are an essential tool for screen printing, probably the
most important piece of equipment besides the actual screen!
Shanghai SRING cooperated factory is established in 1988, with
nearly 20 years experience, our factory imported the advance
equipment, raw material from Europe and United states. With more
than 300 skilled workers, the squeegees are well established in the
world market.
1.squeegee for screen printingAS series: Transparent color
Using high-quality raw materials,stable quality ,with
anti-resistant common solvents,good elasticity,used in textile
printing and general patterns
2.squeegee for screen printingAM series: Dark brown
Using high-quality raw materials,stable quality, good solvent
resistance,abrasion resistance.used for general pattern printing.
3.squeegee for screen printingAA series:Red green blue white
Using imported raw materials,stay in grade,solvent resistance,easy
to grind and long service durability,apply for
advertising,electronics,packing,tobacco and other standard
mechanical printing.
4.squeegee for screen printingAQ series:white
Imported raw materials and equipment.Excellent solvent
resistance,abrasion resistance,sharp knife grinding leveling can be
repeated,especially for glass printing and some high-end printing.
5.squeegee for screen printingAD series:
Imported raw material,imported equipment.With superior solvent
resistance,abrasion resistance,stability,especially for the
electronics industry and used in printed circuit board ,suitable
for all areas of high-grade printing.
Hardness scope & Color
| Grade | Shore | Color | Common Color Sample |
| PU1 | 45-50 | Transparent | |
| PU2 | 50-55 | Light Yellow | |
| PU3 | 55-60 | Light Red | |
| PU4 | 60-65 | Red | |
| PU5 | 65-70 | Light Green | |
| PU6 | 70-75 | Green | |
| PU7 | 75-80 | Blue | |
| PU8 | 80-85 | Coffee | |
| PU9 | 85-90 | Light Brown | |
| PU10 | 90-95 | Pink | |
Hardness Selections
Red, Soft
PU1-PU4 | Suitable for low viscosity ink printing, low density or tough
surface printing. |
Green, Medium
PU5-PU6 | High pressure resistance. Suitable for high or low viscosity ink or
high density surface printing. Could easily control the ink amount
and assure the precision of the printing. |
Blue, Hard
PU7-PU10 | Highest pressure and strongest ink solvent resistance. Could easily
control the ink amount and get the highest quality printing. |
Size Selections
| Length | Width | Thickness |
| 2450mm100” | 9.5mm-320mm | 1mm-30mm |
| 3200mm126” |
| 3660mm144” |
| 4000mm157” |
Edge Selection:
Squeegee for Screen Printing Specification:
| Material | TDI, MDI, PPG, PTMG,PUetc. |
| Color | as requested |
| Hardness | 50-95(Shore A) |
| Density | 1.12-1.25g/cm3 |
| Tensile Strength | 25-55Mpa |
| Tear Strength | 85-155KN/M |
| Elongation | 450-650% |
| Impact Elasticity | >20-30% |
| Tolerance | 0.1-0.3mm |
| Working Temperature | 120°C(max) |
| Surface Finish | One side or both |
Packages:
1)Printing on the squeegees under request
2)Rolled in plastic bag
3)Small carton box for each roll
4)10 small cartons put into a big carton
5)Put into carton box
6)Special demand can be produced under request
Why us:
1.We believe in providing quality not just first time, but every
time.
2.High customer’s satisfaction.
3.Focus on screen printing mesh and filtration cloth since 1983
4.Factory price, Best quality, excellent service( before or after
sale)
5.One-stop service can be provided under request to save your time
and cost.
6.At least 3-4times inspections before goods shipping out, the
sales as the directly person with customers will check the goods
not fixed time and goods.
7.Professional and highly motivated staffs.
