    Nylon Screen Printing Mesh

    Ask Lasest Price
    Brand Name : SPRING
    Certification : ISO9001
    Model Number : JPP
    Delivery Time : 2-5Days
    Payment Terms : TT/LC/Western Union/paypal/others
    Supply Ability : 500000m/Month
    Price : www.springscreenmesh.com
    • Product Details
    • Company Profile

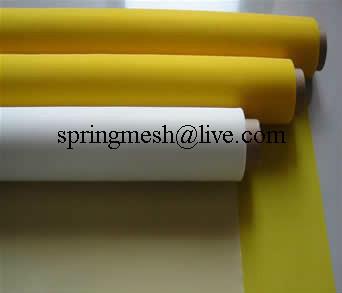

    Nylon Screen Printing Mesh

    Nylon Monofilament Mesh as one of our mainly product we have imported weaving machines from Switzerland and Italy with the skillful technology our products are very popular not only in China but also all over the world.
    Nylon Screen Mesh Fabric (Nylon Flour Filtering) is made of 100% nylon and have the features of durability and best tensility,excellent capability for wear resistance,good stability and low elongation.Widely used in textile printing, garment printing, glaSI printing, pcb printing, etc.
    Advantages & Features of Milling Mesh:
    1.The mesh need to be heat setting after woven and washing, make sure the heat resistance
    2.It is produced by 100% Nylon wire, therefore it can Alkali Resistance.
    3.With high quality material, the mesh have a good feature with Wear resistance.
    4.High Strength and High elasticity
    5.Corrosion Resistance
    Nylon Screen Printing Mesh
    Specifications:
    1) Material: 100% nylon
    2) Weaving: Plain or Twill weave, most of customers use PLAIN weave mesh
    3) Mesh Count: 5T~140T mesh/cm (13mesh~355 mesh/inch)
    4) Maximum width: 360cm (142 inch)
    5) Color: white/yellow/black
    Any special specifications can be customized.

    Certifications:
    ISO19001, ISO14001

    Specification details:
    Type
    Specification (mesh/cm)
    Mesh/Inch
    Wire Dia.
    (um)
    Mesh Opening
    (um)
    Opening Area(%)
    Thickness
    (um)
    JPP4/450
    4
    11
    450
    1823
    60
    900
    JPP6/400
    6
    15
    400
    1267
    58
    840
    JPP7/350
    7
    18
    350
    1079
    57
    640
    JPP8/350
    8
    20
    350
    900
    52
    645
    JPP9/250
    9
    24
    250
    861
    60
    460
    JPP10/250
    10
    25
    250
    750
    56
    530
    JPP12/300
    12
    30
    300
    533
    41
    495
    JPP14/200
    14
    35
    200
    514
    52
    380
    JPP16/200
    16
    40
    200
    425
    46
    400
    JPP16/250
    16
    40
    250
    375
    36
    420
    JPP17/200
    17
    42
    200
    388
    44
    380
    JPP18/220
    18
    45
    220
    366
    37
    400
    JPP20/200
    20
    50
    200
    300
    36
    375
    JPP24/150
    24
    60
    150
    267
    41
    305
    JPP28/150
    28
    70
    150
    207
    34
    278
    JPP30/120
    30
    76
    120
    213
    41
    230
    JPP32/100
    32
    80
    100
    213
    46
    240
    JPP36/100
    36
    90
    100
    178
    41
    195
    JPP40/100
    40
    100
    100
    150
    36
    192
    JPP44/100
    44
    110
    100
    127
    31
    175
    JPP48/80
    48
    120
    80
    128
    38
    150
    JPP56/60
    56
    142
    60
    120
    44
    110
    JPP59/60
    59
    150
    60
    110
    42
    98
    JPP64/60
    64
    163
    60
    96
    38
    120
    JPP72/50
    72
    183
    50
    89
    41
    90
    JPP80/50
    80
    203
    50
    75
    36
    93
    JPP100/43
    100
    254
    43
    60
    36
    78
    JPP120/43
    120
    305
    43
    43
    27
    80
    JPP130/43
    130
    330
    43
    34
    19.5
    83
    Our Product Market:
    Nylon Screen Printing Mesh
