Polyester Screen Printing Mesh
Shanghai Spring Industrial Corp. is a professional supplier and
exporter of screen printing mesh, we have more than 20 years
experiences in this industry.

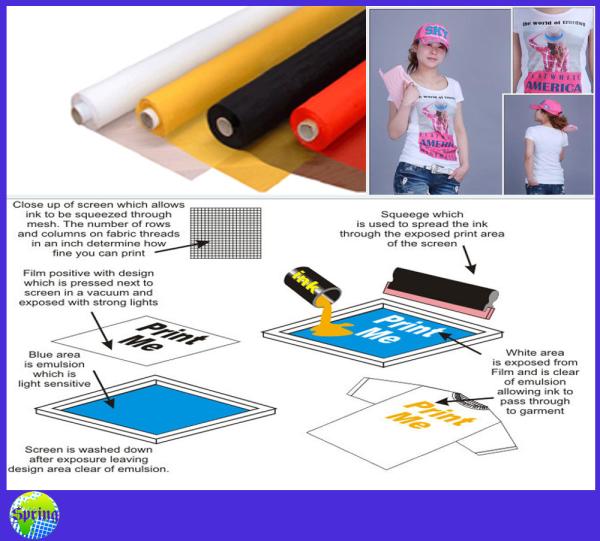

Our Polyester Screen Printing Mesh is made from high quality
monofilment polyester yarn which is imported(high count mesh) or
the best quality(low count mesh) in China.
1. Specifications
Material: 100% Polyester
Mesh count: 7T(18mesh/inch) to 180T(460mesh/inch)
Weaving Method: plain weave
Color: White, yellow is the normal color, special color can be
customized
Width: 0.1M(3.9") - 3.65M(144")
2. Application
Our polyester mesh are widely used for both screen printing and
filtration.
1) Polyeser screen printing mesh used for Tshirt/Garment/textile
printing
Tshirt printing is very popular in America and Europe market, more
than 70% polyester screen printing mesh exported to America and
Europe used for Tshirt printing. From 20mesh to 355mesh is the most
popular specifications.
The Textile printing is most popular in South Asia, the most
popular items is 77T and 54T, and 90" 128" or 144" is the popular
width.
2) Polyester screen printing mesh used for circuit board printing
The most popular item used for PCB is 120T-34, which is widely used
in East Asia market. The PCB printing have more strictly demand
than other products printing. High tesnion, more clean and smooth
surface, etc.
3) Polyester screen printing mesh used for ceramic and glass
printing
Most of the T type polyester screen printing mesh can be used for
cramics and glass printing. There are huge quantity demand about
the mesh used in these field.
3. Advantages:
1) High tension
2) Can use more times than other company's mesh
3) Good surface
4) Professional factory and technicists
5) Strictly quality control system, every goods inspect at least
three times before shipping out.
6) Fast delivery
7) Excellent service
Delivery Time: Within 3-15days according to the order quantity.
Package: rolled on papyer tube, label card, paper band, plastic
bag, then carton box, water-proof film. Specail request can be
customized.
Our service porpose:"Your sucess is our mission!" Any problem or questions, just don't hesitate to contact us at
any time.
We will reply you witin 24hours.
4. How to choose mesh?
Ink manufactures and every screen printer on earth has their own
ideas as to what mesh should be used. We will give you our idea of
mesh count usage, but feel free to make your own list.
To assist you in making your own list, think of mesh this way.
Light color material needs less ink layer to cover, so use higher
mesh counts.
Darker color materials need a thicker ink layer, so use lower mesh
counts.
Remember, thicker ink layers require more cure time,the reverse is
also true.
Printers using a manual press should stay between 38 and 125, maybe
158 mesh. Any mesh higher than say 196 requires a lot of strength
to push the ink through. Now automatic press owners, can use the
full range of mesh counts, and should use them.
Contact Us:
Sales Maganer: Sara
Skype: springmesh
Tel:86-18117348869
| Type | Mesh Count (/cm) | Mesh Count (/inch) | Thread Diameter(um) | Mesh Opening(um) | Open Area(%) | Thickness (um) |
|
| DPP 7/350 | 7 | 18 | 350 | 1079 | 57 | 640 |
| DPP 8/300 | 8 | 20 | 300 | 950 | 58 | 550 |
| DPP 10/250 | 10 | 25 | 250 | 750 | 56 | 445 |
| DPP 12/250 | 12 | 30 | 250 | 583 | 49 | 450 |
| DPP 16/200 | 16 | 40 | 200 | 425 | 46 | 400 |
| DPP 20/100 | 20 | 50 | 100 | 400 | 64 | 200 |
| DPP 20/150 | 20 | 50 | 150 | 350 | 49 | 260 |
| DPP 20/180 | 20 | 50 | 180 | 320 | 41 | 338 |
| DPP 24/100 | 24 | 60 | 100 | 317 | 58 | 190 |
| DPP 24/120 | 24 | 60 | 120 | 297 | 51 | 220 |
| DPP 27/70 | 27 | 70 | 70 | 300 | 66 | 125 |
| DPP 32/80 | 32 | 80 | 80 | 233 | 55 | 140 |
| DPP 32/100 | 32 | 80 | 100 | 213 | 46 | 170 |
| DPP 34/100 | 34 | 86 | 100 | 194 | 44 | 170 |
| DPP 36/80 | 36 | 90 | 80 | 198 | 51 | 137 |
| DPP 36/100 | 36 | 90 | 100 | 178 | 41 | 198 |
| DPP 39/55 | 39 | 100 | 55 | 201 | 62 | 95 |
| DPP 39/80 | 39 | 100 | 80 | 176 | 47 | 141 |
| DPP 39/100 | 39 | 100 | 100 | 156 | 37 | 185 |
| DPP 43/80 | 43 | 110 | 80 | 153 | 43 | 132 |
| DPP 47/55 | 47 | 120 | 55 | 158 | 55 | 95 |
| DPP 47/71 | 47 | 120 | 71 | 142 | 44 | 135 |
| DPP 53/55 | 53 | 135 | 55 | 134 | 50 | 95 |
| DPP 53/64 | 53 | 135 | 64 | 125 | 44 | 118 |
| DPP 53/71 | 53 | 135 | 71 | 118 | 39 | 130 |
| DPP 59/55 | 59 | 150 | 55 | 114 | 46 | 88 |
| DPP 59/64 | 59 | 150 | 64 | 105 | 39 | 105 |
| DPP 61/55 | 61 | 155 | 55 | 109 | 44 | 84 |
| DPP 62/64 | 62 | 155 | 64 | 97 | 36 | 97 |
| DPP 64/55 | 64 | 163 | 55 | 101 | 42 | 85 |
| DPP 64/64 | 64 | 163 | 64 | 92 | 35 | 100 |
| DPP 68/55 | 68 | 173 | 55 | 92 | 39 | 85 |
| DPP 68/64 | 68 | 173 | 64 | 83 | 32 | 100 |
| DPP 72/48 | 72 | 183 | 48 | 91 | 43 | 89 |
| DPP 72/55 | 72 | 183 | 55 | 84 | 36 | 100 |
| DPP 77/55 | 77 | 195 | 55 | 75 | 33 | 86 |
| DPP 80/48 | 80 | 200 | 48 | 77 | 38 | 76 |
| DPP 90/45 | 90 | 230 | 45 | 66 | 35 | 69 |
| DPP 90/48 | 90 | 230 | 48 | 63 | 32 | 76 |
| DPP 100/40 | 100 | 250 | 40 | 60 | 36 | 61 |
| DPP 110/40 | 110 | 280 | 40 | 51 | 31 | 58 |
| DPP 120/31 | 120 | 300 | 31 | 52 | 39 | 53 |
| DPP 120/34 | 120 | 300 | 34 | 49 | 35 | 58 |
| DPP 120/40 | 120 | 300 | 40 | 43 | 27 | 65 |
| DPP 140/31 | 140 | 350 | 31 | 40 | 32 | 49 |
| DPP 140/34 | 140 | 350 | 34 | 37 | 27 | 59 |
| DPP 150/31 | 150 | 380 | 31 | 36 | 29 | 52 |
| DPP 150/34 | 150 | 380 | 34 | 33 | 24 | 60 |
| DPP 165/27 | 165 | 420 | 27 | 34 | 31 | 44 |
| DPP 165/31 | 165 | 420 | 31 | 30 | 24 | 53 |
| DPP 180/27 | 180 | 460 | 27 | 29 | 26 | 42 |
| DPP 200/27 | 200 | 500 | 27 | 23 | 21 | 45 |
| Remark: These are theoretical data for reference only. |
| Mesh Opening & Open Area only slight error according to actual
data. |
