Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh

Shanghai Spring Industrial Company Ltd
Contact Now
    Buy cheap Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh from wholesalers

    Buy cheap Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh from wholesalers
    • Buy cheap Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh from wholesalers
    • Buy cheap Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh from wholesalers
    • Buy cheap Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh from wholesalers
    • Buy cheap Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh from wholesalers

    Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh

    Ask Lasest Price
    Brand Name : SPRING
    Model Number : DPP
    Certification : ISO9001
    Price : www.springscreenmesh.com
    Payment Terms : TT/LC/Western Union/paypal/others
    Supply Ability : 500000m/Month
    Delivery Time : 2-5Days
    • Product Details
    • Company Profile

    Screen printing mesh gauze printing screen polyester mesh 127 wide 80 mesh 100 mesh 200 mesh 300 mesh 420 mesh

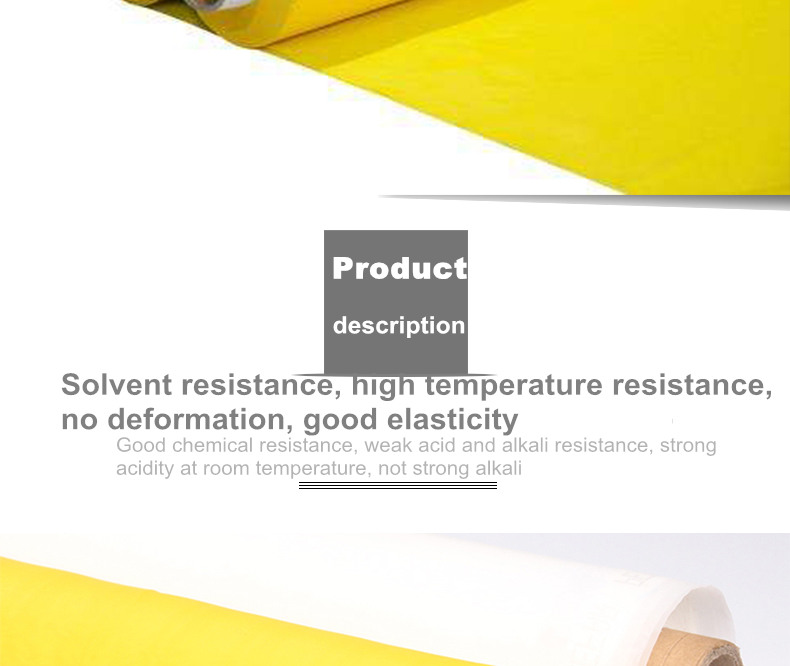

    Product description:
    We introduce high-quality imitation imported mesh yarns, with a sufficient number of products, strong tension, and the following characteristics:

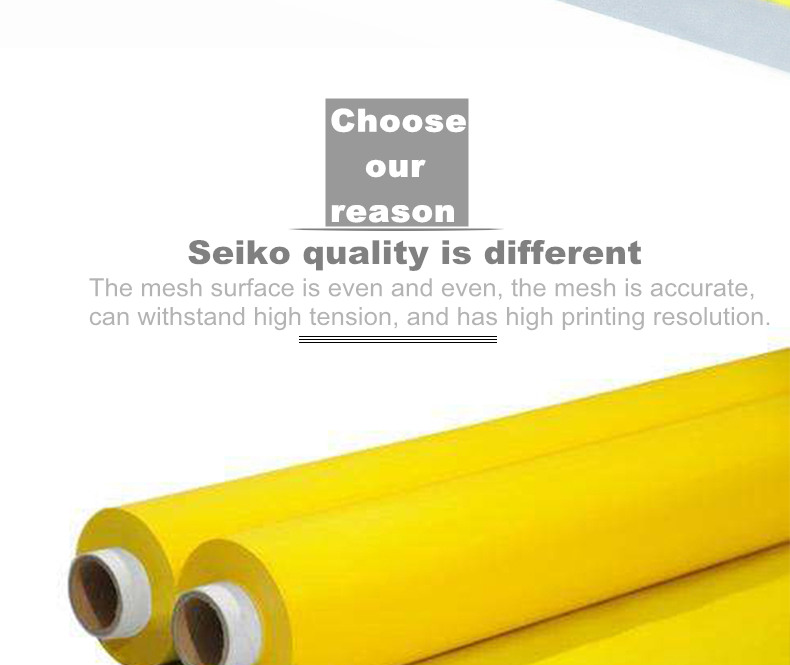

    The mesh surface is even and flat, the mesh is accurate, can withstand high tension, and the ink is good in the screen printing process.
    Polyester material, non-toxic and odorless, strong anti-wrinkle, good elasticity, stable size under tension, not easy to deform, resistant to sunlight and friction.
    Storage is not mildew, good electrical insulation
    Good chemical resistance, weak acid and alkali resistance, resistant to dilute acid at room temperature, not resistant to strong alkali.
    It can be used in screen printing plate making process, and is widely used in screen printing plate making of printing, film switch, circuit board, plastic, hardware, glass and other products.

    Number of choices

    ★General normal silk screen water-based glue selection 80 mesh-120 mesh mesh also has special glue to choose 40 mesh-60 mesh mesh
    ★Used water-based ink printing to select 150 mesh-250 mesh mesh
    ★Using oily ink screen printing, it is necessary to select a mesh with a higher mesh number. Generally, 200 mesh-300 mesh mesh is selected. If the pattern is particularly precise, choose a higher mesh number.
    ★ When choosing the mesh, it is mainly related to the pattern and the used slurry. If the high mesh is selected, it is not suitable for the glue.


    Product specifications


    100% Polyester Monofilament Mesh
    TypeWeaveMesh/CMMesh/inchWire Dia.
    (um)
    Mesh Opening(um)Open Area
    (%)
    Thickness
    (um)
    PET-7/1080PW718350108057640
    PET-8/950PW82030095058550
    PET-10/800PW102520080064380
    PET-10/750PW102525075056480
    PET-12/633PW123020063358390
    PET-12/583PW123025058349480
    PET-16/425PW164020042546400
    PET-20/420PW20508042071140
    PET-20/400PW205010040064185
    PET-20/380PW205012038058230
    PET-20/350PW205015035049290
    PET-24/337PW24608033765150
    PET-24/317PW246010031758190
    PET-24/297PW246012029751235
    PET-24/267PW246015026741295
    PET-29/225PW297412022543238
    PET-32/249PW32806424963115
    PET-32/233PW32808023355150
    PET-32/213PW328010021346180
    PET-34/194PW348610019444185
    PET-36/178PW369010017841190
    PET-39/201PW3999552016290
    PET-39/176PW39998017647150
    PET-39/156PW399910015637195
    PET-43/153PW431108015343155
    PET-47/158PW47120551585595
    PET-47/142PW471207114244130
    PET-53/134PW53135551345098
    PET-53/125PW531356412544115
    PET-53/118PW531357111839133
    PET-59/114PW591505511446100
    PET-59/105PW591506410539118
    PET-64/101PW641635510142102
    PET-64/92PW64163649235120
    PET-72/91PW7218348914375
    PET-72/84PW72183558437105
    PET-77/75PW77195557533108
    PET-80/77PW8020348773877
    PET-90/63PW9023048633280
    PET-100/60PW10025440603665
    PET-110/51PW11028040513170
    PET-120/48PW12030534483563
    PET-120/43PW12030540432775
    PET-140/37PW14035534372765
    PET-140/36PW15038031362952
    PET-150/33PW15038034332456
    PET-165/34PW16542027343150
    PET-165/30PW16542031302458
    DPP180/29PW18046027292650
    DPP200/19TW200508311914
