product description:
Stainless steel mesh is classified by type:
1. Stainless steel plain weave.
2, stainless steel twill net.
3, stainless steel bamboo pattern net.
4, five comprehensive stainless steel mesh.
5, stainless steel punching net.
6, stainless steel ginning net.
7, stainless steel chain link flower net.
8, stainless steel mesh.
9, stainless steel welded wire mesh.
10, stainless steel hexagonal net.
11, stainless steel mat network.
12, stainless steel barbecue net.
13, stainless steel ore screen.
14, stainless steel tortoise shell net.
Material: SUS302, 304, 304L, 316, 316L, 310s
Material: stainless steel wire, stainless steel plate type
stainless steel heat resistant, acid resistant, corrosion
resistant, wear resistant.
Stainless steel mesh, also known as stainless steel mesh, stainless
steel mesh, stainless steel filter, stainless steel wire mesh, etc.

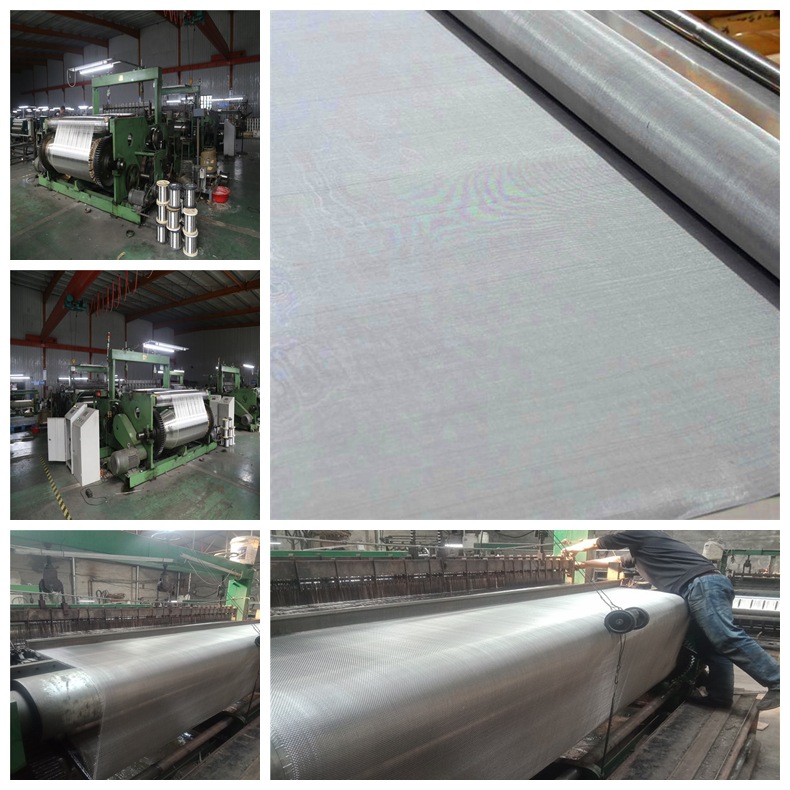

Production process: radial and weft wire diameters are the same,
each wire crosses every two (or more) wefts, and each weft crosses
every two (or more) wires Made up and down with a fork.
Weaving method: plain, twill, mat weave.
Material: 201, 304, 304L, 321, 316, 316L, 310S, 2250, 2520, 914 and
other materials.
Width: Common width 1 m 1.2 m 1.5 m, more than 2 meters to 6 meters
can be processed and ordered.
Length: 30 meters, according to customer requirements.
Shape: roll shape, and can be punched into square pieces, wafers
and other shapes, can also be processed into other filter
equipment.
Packing: Generally wrapped in kraft paper, outsourced waterproof
paper.
Performance: acid resistance, alkali resistance, high temperature
resistance, tensile strength, wear resistance, etc.
Uses: Used for screening and filtration under acid and alkali
environmental conditions, as a mud net in the petroleum industry,
as a sieve filter in the chemical fiber industry, and as a pickling
net in the electroplating industry. It can also be used in
petroleum, chemical, construction, textile, pharmaceutical,
aviation, aerospace, railway, highway, garden protection, aquatic
products, aquaculture, metallurgy, national defense, coal,
minerals, light industry, decoration, agriculture, forestry, parks,
machinery and other fields. Sound insulation wall, roof, powder
layer, large mine screen, electronics industry and household
appliances, mechanical equipment safety protection and motor blade
housing, air filter and heat treatment.
| Stainless steel mesh number wire diameter weight comparison table |
| Weaving method | Weaving method | Wire diameter (mm) | Mesh (mm) | Weight (kg / square meter) |
| Plain weave | 1mesh | 2mm | 23.4 | 2 |
| Plain weave | 2mesh | 1.5mm | 11.2 | 2.25 |
| Plain weave | 3mesh | 1.0mm | 7.466 | 1.5 |
| Plain weave | 4mesh | 0.9mm | 5.45 | 1.62 |
| Plain weave | 5mesh | 0.8mm | 4.28 | 1.6 |
| Plain weave | 6mesh | 0.7mm | 3.53 | 1.47 |
| Plain weave | 7mesh | 0.6mm | 3.02 | 1.26 |
| Plain weave | 8mesh | 0.5mm | 2.675 | 1 |
| Plain weave | 9mesh | 0.5mm | 2.322 | 1.125 |
| Plain weave | 10mesh | 0.8mm | 1.74 | 3.2 |
| Plain weave | 11mesh | 0.7mm | 1.609 | 2.695 |
| Plain weave | 12mesh | 0.6mm | 1.516 | 2.16 |
| Plain weave | 13mesh | 0.5mm | 1.453 | 1.625 |
| Plain weave | 14mesh | 0.4mm | 1.414 | 1.12 |
| Plain weave | 15mesh | 0.4mm | 1.293 | 1.2 |
| Plain weave | 16mesh | 0.35mm | 1.237 | 0.98 |
| Plain weave | 17mesh | 0.35mm | 1.144 | 1.041 |
| Plain weave | 18mesh | 0.35mm | 1.061 | 1.1 |
| Plain weave | 19mesh | 0.35mm | 0.986 | 1.16 |
| Plain weave | 20mesh | 0.4mm | 0.97 | 0.97 |
| Plain weave | 21mesh | 0.3mm | 0.909 | 0.945 |
| Plain weave | 22mesh | 0.3mm | 0.854 | 0.99 |
| Plain weave | 23mesh | 0.25mm | 0.854 | 0.718 |
| Plain weave | 24mesh | 0.25mm | 0.858 | 0.48 |
| Plain weave | 25mesh | 0.2mm | 0.816 | 0.5 |
| Plain weave | 26mesh | 0.2mm | 0.776 | 0.52 |
| Plain weave | 27mesh | 0.2mm | 0.74 | 0.54 |
| Plain weave | 28mesh | 0.3mm | 0.607 | 1.26 |
| Plain weave | 29mesh | 0.3mm | 0.575 | 1.3 |
| Plain weave | 30mesh | 0.3mm | 0.546 | 1.35 |
| Plain weave | 40mesh | 0.25mm | 0.385 | 1.25 |
| Plain weave | 50mesh | 0.2mm | 0.308 | 1 |
| Plain weave | 60mesh | 0.15mm | 0.273 | 0.675 |
| Plain weave | 70mesh | 0.14mm | 0.222 | 0.686 |
| Plain weave | 80mesh | 0.12mm | 0.197 | 0.576 |
| Plain weave | 90mesh | 0.11mm | 0.172 | 0.544 |
| Plain weave | 100mesh | 0.10mm | 0.154 | 0.5 |
| Plain weave | 120mesh | 0.08mm | 0.131 | 0.384 |
| Plain weave | 150mesh | 0.07mm | 0.099 | 0.367 |
| Plain weave | 380mesh | 0.02mm | 0.046 | 0.076 |
| Plain weave | 400mesh | 0.018mm | 0.0455 | 0.0648
|
